The primary function of this monitor is to reliably measure speed and force.
HIGHLIGHTS
-
A 7-inch high-resolution color touch screen display is included
-
It has the capacity for up to 8 channel analog inputs with fully automatic calibration, eliminating the need for amplifiers or filters
-
There are multiple counters for tool, station, batch, and maintenance purposes
-
Machine Status LED indicator.
-
Controls Cold Headers, Thread Rollers, Stamping, and Broaching Machines
PROCESS MONITOR
KEY BENEFITS
-
Reduces unexpected machine breakdowns → less damage, downtime, and repair cost
-
Faster setup times, improving productivity
-
Enables detailed evaluation of process failures for better corrective action and efficiency
-
Real-time monitoring confirms each cycle aligns with reference profiles within predefined limits
SPECIFICATIONS
-
Shipping Weight: 5 lbs (2.27 kg)
-
Shipping Dimensions: 18 in x 14 in x 6 in (457.2 mm x 355.6 mm x 152.4 mm)
-
Unit Weight: 3.5 lbs (1.59 kg)
-
Unit Dimensions:
– Height: 252.32 mm (9.93 in)
– Width: 267.88 mm (10.55 in)
– Depth: 120.24 mm (4.73 in)
20 mm / 7 mm Sensor
Epoxied in a pocket
Proximity Timing Sensor
Mounted on the side of the ram to measure distance
INPUT/OUTPUT
-
Inputs:
– 8 Analog
– 1 Digital
– 110V / 240V Power
-
Outputs:
– 4 Control Relays
8 mm Probe Sensor
Secured in an 8 mm hole
Cam Sensor
Used for part counts, RPM, timing signal, and stopping criteria
ACCEPTED SENSOR TYPES
T3 MODEL | USER INTERFACE OVERVIEW
Counts:
-
Batch counting tool
-
Device for counting tools per station
-
Machine speed (RPM)

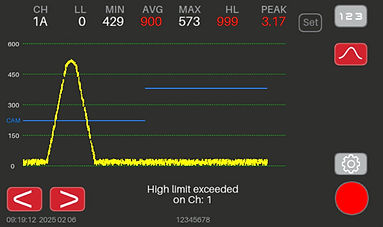

Error Display:
-
Control limits shown
-
Reason for STOP displayed

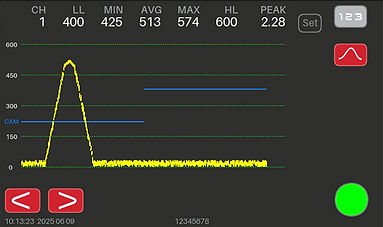

Cam vs. Cursors:
-
Standard cam sensing
-
Advanced cursor for the most accurate control

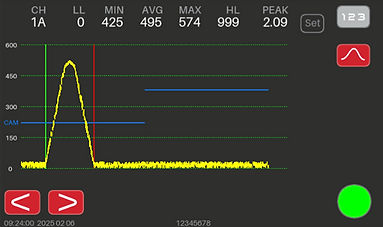

The blue line shows standard cam sensing, and the red and green lines represent the more precise advanced cursor sensing.
NEW LIGHTWEIGHT MATERIALS
We have improved our manufacturing process and are now using high-quality black polycarbonate filaments for our monitors. This material can resist bending well, with a flexural strength of 71 MPa, and it can withstand heat up to 293ºF, making it suitable for various environments.
